Air-Cooled Battery EnergyStorage Pack

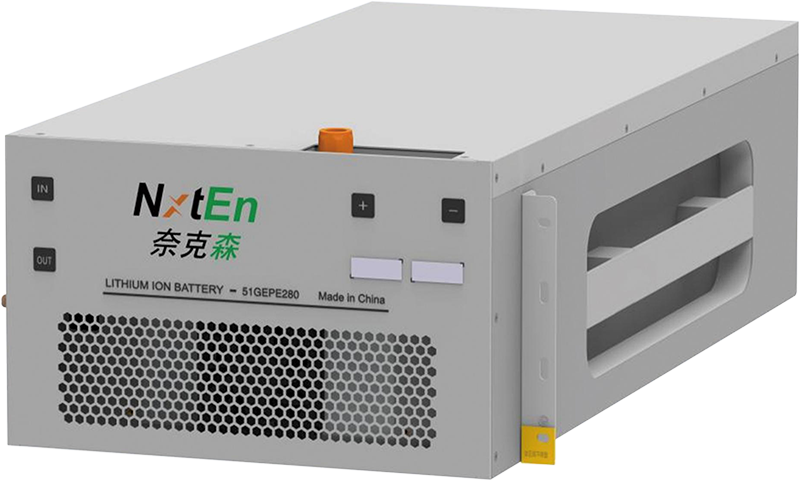

Nxten Air-Cooled Energy Storage Pack is a cost-efficient and reliable battery module that uses forced air cooling to maintain optimal operating temperatures. It is ideal for commercial & industrial (C&l) energy storage, backup power systems, and other applications where simplicity and affordability are key.
Typical Applications:
· Commercial & Industrial Energy Storage
· Renewable Energy Integration
· Backup Power Solutions
· EV Charging Infrastructure
· Telecom & Network Power
01. Efficient Cooling – Fans circulate air to keep battery cells within safe temperature ranges.
02. Modular Design – Easy to install and expand for flexible energy storage needs.
03. Low Maintenance – No liquid cooling components, reducing servicing complexity.
04. Safety & Reliability – Built-in protection against overheating with stable LFP (LiFePO4) battery

| Specification | 10S Model | 16S Model |
| Rated Voltage | 32V | 51.2V |
| Rated Capacity | 560Ah/628Ah | 280Ah/314Ah |
| Rated Energy | 17.9/20.0kWh | 14.3/16.0kWh |
| Assembly Method | 2P10S | 1P16S |
| Max.Current | 0.5C | |
| Cycle Life | 6000 @100%DOD @RT | |
| IP Rating | IP20 | |
| Dimensions(W×D×H) | 390×987×240±5mm | 390×820×240±5mm |
| Weight | <135kg | <110kg |
| Fire Management | Aerosol | |
| Thermal Management | Air Cooling | |
