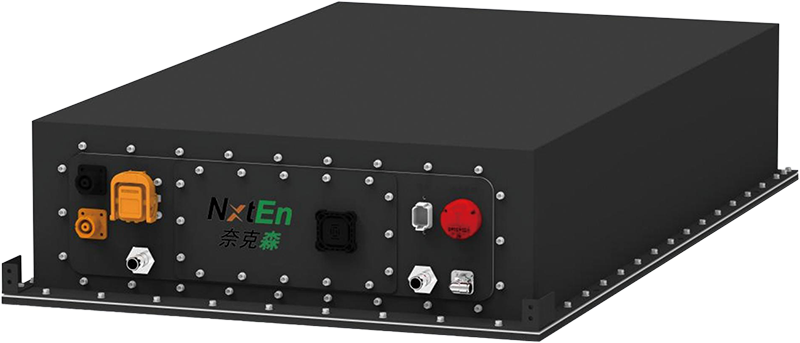

Liquid-Cooled Battery Energy Storage Pack

Nxten liquid-cooled energy storav ge pack uses advanced liquid cooling technology to keep battery temperatures perfectly balanced. It’s the best choice for high-power, long-life applications where maximum performance and safety are critical.

Typical Applications:
· Large-scale energy storage (solar/wind farms, grid sup-port)
· High-power applications (EV fast charging, industrial equipment)
· Demanding environments (hot climates, 24/7 operation)

01. Superior Cooling – Liquid cooling maintains more stable temperatures than air cooling, extending battery life
02. Higher Energy Density – Compact design stores more power in less space
03. UItra-Reliable – Fully sealed cooling system prevents leaks and corrosion
04. Smart Temperature Control – Automatically adjusts cooling for peak efficiency

Specification 48S Model 52S Model 104S-314AH Model
Pack Model 48S 52S 104S-314AH
Cell Type LiFePO4 (LFP) Energy Storage Cells LiFePO4 (LFP) Energy Storage Cells LiFePO4 (LFP) Energy Storage Cells
Configuration 1P48S 1P52S 1P104S
Nominal Voltage 154V 166V 332.8V
Operating Voltage 120V~175V 130V~190V 260V~379.6V
Rated Energy 43.0KWh/48.23kWh 46.59KWh/52.2KWh 104.5KWh
Charge/Discharge Rate 0.5P 0.5P 0.5P
Fire Protection Active + Passive Active + Passive Active + Passive
Operating Temperature -40℃~55℃ -40℃~55℃ -40℃~55℃
Protection Rating IP67 IP67 IP67
Dimensions(W×H×D) 808×1172×243mm 808×2150×245mm
Weight ≤320kg ≤340kg ≤650kg
