Residential Energy Storage Pack

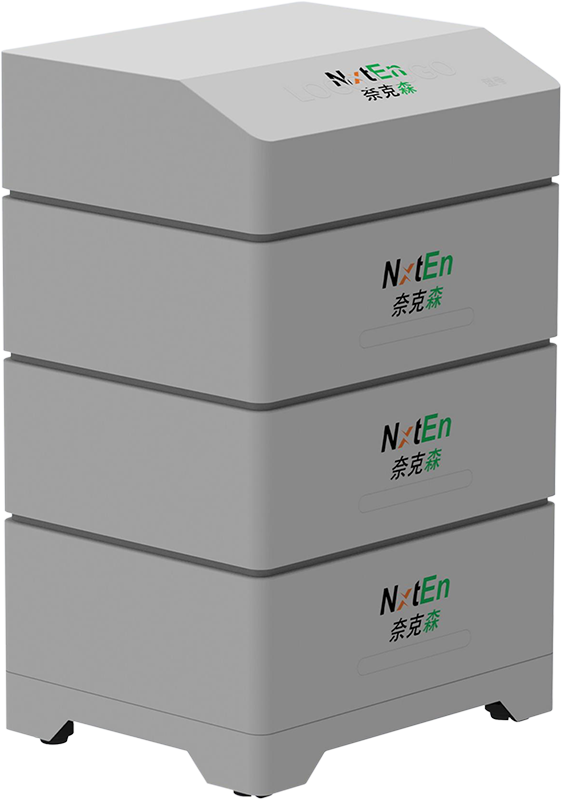

Nxten residential energy storage pack stores solar and grid power for home use, automatically providing backup during outages. Its modular stackable design allows flexible capacity expansion from 5kWh to 40kWh. The system features remote monitoring via mobile app and integrates with most solar inverters.
Typical Applications:
· Solar energy storage
· Peak/off-peak arbitrage
·Emergency backup power
·Off-grid power supply
01. IP65-rated enclosure for outdoor deployment
02. Pack-level fire suppression system (UL9540A compliant)
03. Universal inverter compatibility (Tested with Growatt/Solis/Afore)
| Rated Voltage | 51.2V | 51.2V | 51.2V | 102.4V | 102.4V | 400V | 600V |
| Rated Capacity | 100Ah | 200Ah | 100Ah | 50Ah | 100Ah | 314Ah | 314Ah |
| Rated Energy | 5.12kWh | 10.2KWh | 5.12kWh | 5.12kWh | 10.2KWh | 8.03kWh | 10.04KWh |
| Assembly Method | 1P16S | 1P16S | 1P16S | 1P32S | 1P32S | 1P8S | 1P10S |
| Max.Current | 1C | 200A | 200A | ||||
| Cycle Life | 6000@100%DOD @RT- | ||||||
| IP Rating | IP65- | ||||||
| Dimensions(W×D×H) | 650×505×160±5mm | 650×530×250±5mm | 650×505×160±5mm | 690×505×160±5mm | 890×600×160±5mm | 450×590×310±5mm | 450×665×310±5mm |
| Weight | 75±3kg | 110±3kg | 75±3kg | 75±3kg | 115±3kg | 67±3kg | 83±3kg |
| Fire Management | Aerosol | ||||||
| System Rated Voltage | 51.2V | 51.2V | 102.4/153.6/204.8/256/307.2V | 102.4/204.8/307.2/409.6/512/614.4V | 102.4/204.8/307.2/409.6V | 400V | 600V |
| System Rated Energy | 5/10/15/20/25/30kWh | 10/20/30/40kWh | 10/15/20/25/30kWh | 5/10/15/20/25/30kWh | 10/20/30/40KWh | 8/16/24/32KWh | 10/20/30/40kWh |
| Pack Quantity | 1-6pcs | 1-4pcs | 2-6pcs | 1-6pcs | 1-4pcs | 1-4pcs | 1-4pcs |
| System Height | <1320±5mm | <1360±5mm | <1320±5mm | <1320±5mm | <1000±5mm | <1610±5mm | <1610±5mm |
| System Weight | <490±5kg | <475±5kg | <490±5kg | <490±5kg | <495±5kg | <305±5kg | <370±5kg |
| Communication) | CAN/Modbus/Bluetooth/WiFi | CAN/Modbus | |||||
