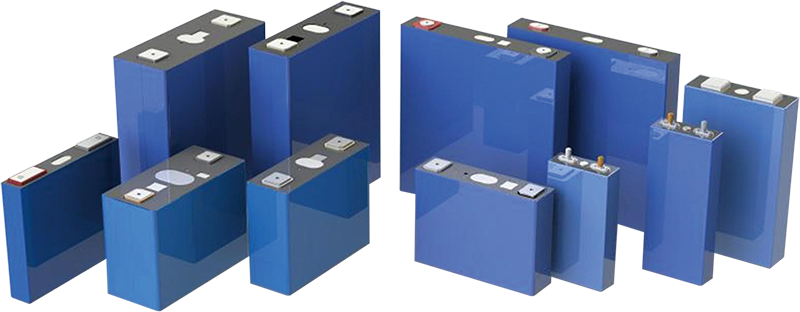

Battery Cells
Nxten Lithium-ion Batteries deliver outstanding performance through high energy density, wide temperaturerange operation, high power output, and mult-levelsafety protection, meeting diverse application needs from residential energy storage to large-scale industnal scenarios while ensuring long cycle life and exceptional reliability.
01. High-density & long-life battery technology
02. UItra-wide operational window (-40℃ to 60℃)
03. High power and fast charge/discharge capability
04. Intrinsic safety
| Model | LFP50Ah | LFP72Ah | LFP100Ah | LFP142Ah | LFP205Ah | LFP230Ah | LFP280Ah | LFP314Ah |
| Nominal Capacity (Ah) | 50 | 72 | 100 | 142 | 205 | 230 | 280 | 314 |
| Voltage Range (V) | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 | 2.5~3.65 |
| Rated Charge/ Discharge Current |
Charge: 36A (0.5C) Discharge: 72A (1C) |
Charge: 25A (0.5C) Discharge: 50A (1C) |
Charge: 50A (0.5C) Discharge: 100A (1C) |
Charge: 71A (0.5C) Discharge: 142A (1C) |
Charge: 102.5A (0.5C) Discharge: 205A (1C) |
Charge: 115A (0.5C) Discharge: 230A (1C) |
Charge: 140A (0.5P) Discharge: 140A (0.5P) |
Charge: 157A (0.5P) Discharge: 157A (0.5P) |
| Max Pulse Current | Charge: 100A (2C, 10s) Discharge: 150A (3C, 10s) |
Charge: 144A (2C, 10s) Discharge: 216A (3C, 30s) |
Charge: 200A (2C, 10s) Discharge: 300A (3C, 30s) |
Charge: 284A (2C, 10s) Discharge: 426A (3C, 30s) |
Charge: 410A (2C, 60s) Discharge: 410A (2C, 60s) |
Charge: 460A (2C, 60s) Discharge: 690A (3C, 30s) |
Charge: 560A (2P, 60s) Discharge: 560A (2P, 60s) |
Charge: 628A (2P, 60s) Discharge: 628A (2P, 60s) |
| Rated Power (W) | 160 (1C) | 230.4 (1C) | 320 (0.5C) | 454.4 (1C) | 656 (1C) | 736 (1C) | 896 (0.5P) | 502.4 (0.5P) |
| Max Pulse Power (W) | 480 (3C) | 691.2 (3C) | 960 (3C) | 1363.2 (3C) | 1312 (2C) | 2208 (3C) | 3584 (4P) | 2009.6 (4P) |
| Cycle Life(cycles, ≥80%) | ≥6000 | ≥6000 | ≥3000 | ≥3500 | ≥4000 | ≥4000 | ≥8000 | ≥8000 |
| Dimensions (L×W×H, mm) | 148.66×39.72×101.31 | 148.66×39.72×101.31 | 148.4×52.32×119.0 | 148.66×70.22×115.3 | 174.0×53.82×206.8 | 174.0×53.82×206.8 | 174.0×71.75×206.8 | 174.0×71.75×206.8 |
| Weight (kg) | 1.13±0.05 | 1.40±0.05 | 1.87±0.1 | 2.60±0.03 | 4.16±0.12 | 4.16±0.12 | 5.5±0.15 | 5.76±0.2 |
