All-in-One Residential Energy Storage System

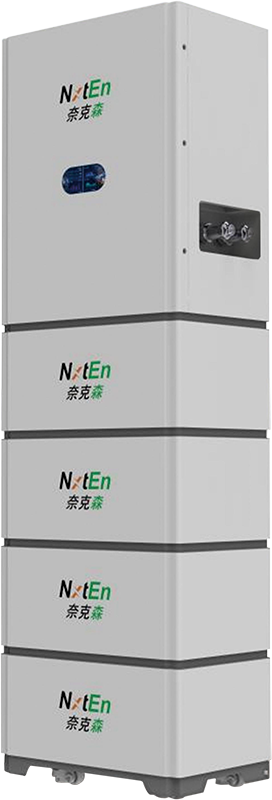

Nxten All-in-One Residential Energy Storage System combines a hybrid inverter with stackable battery storage (5-20kWh capacity) in a single unit. It automatically manages power from solar, grid, and battery sources, providing uninterrupted electricity during outages.

Typical Applications:
· Solar Self-Consumption: Stores excess solar energy during the day for use at night
· Backup Power: Provides uninterrupted power supply during grid outages
· Peak Shaving: Reduces electricity costs by using stored energy during peak rate periods
· Off-Grid Living: Enables energy independence for remote locations

01. 5kWh modular design for flexible expansion
02. automatic identification
03. Single & three-phase residential inverter compatible

Model ZHDG-A380-17/N
(N=4~13)		 ZHDG-A380-20/N
(N=4~13)		 ZHDG-A380-25/N
(N=5~13)		 ZHDG-A380-30/N
(N=6～13)
Cell Type LFP 3.2V/100Ah
Battery Pack Configuration 1P16S/5.12kWh
System Capacity 20.48~66.56kWh 25.6~66.56kWh 30.72~66.56kWh
Pack Voltage Range 42.0-58.4V
System Voltage Range N×40VDC~N×58.4VDC
Max.Charge/Discharge Current 50A/50A 60A/60A
Parameter 17kW 20kW 25kW 30kW
Rated Output Power 17kW 20kW 25kW 30kW
Max.Output Power 18.7kW 22KW 27.5kW 33kW
Max.Input Power 25.5kW 30kW 37.5kW 45kW
Output Waveform Pure Sine Wave
AC Output 230V/400V (3-phase, configurable)
Grid Frequency 50Hz/60Hz (configurable)
Power Factor 1 (±0.8 adjustable)
THD <3%
