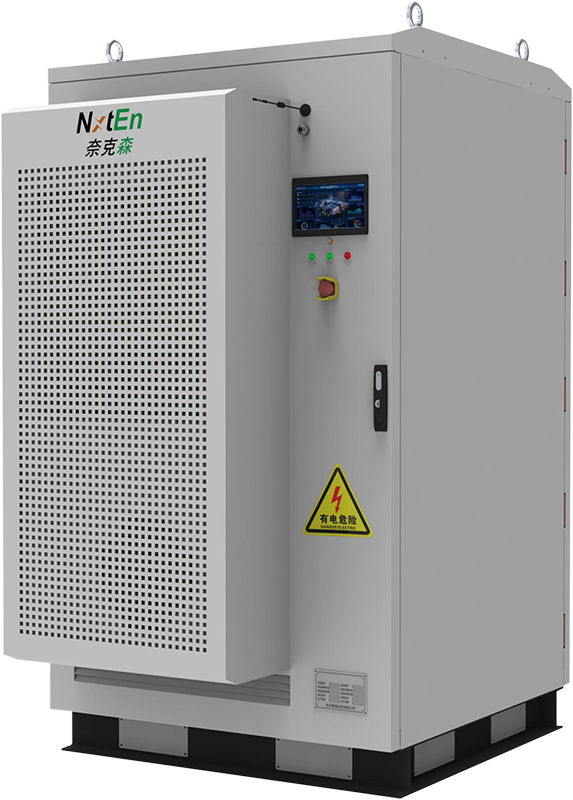

Outdoor Commercial & Industrial Energy Storage Cabinet (Air-Cooled)

Nxten Outdoor Commercial & Industrial Energy Storage Cabinet (Air-Cooled) is a robust, all-in-one energy storage solution designed for demanding C&l applications, featuring integrated battery modules, PCS, and thermal management in a single weatherproof enclosure.

Typical Applications:
· Peak shaving for factories and shopping malls
· Demand charge management
· Renewable energy integration (solar/wind)
· Microgrid applications

01. Scalable Capacity: Modular design from 65kWh to 131kWh configurations
02. Advanced Cooling: Intelligent forcedair cooling system maintains optimal 25±3℃ operating temperature
03. High Efficiency: 96% round-trip efficiency with 1000V DC system voltage
04. Industrial Protection: IP54 rated cabinet with corrosion-resistant coating

MODLE ESS-30-xxx-IA ESS-40-xxx-IA ESS-50-xXX-IA ESS-50-xxx-IA ESS-60-xxx-IA
System Rated Power 30kW 40kW 50kW 50kW 60kW
System Rated Voltage 204.8V 256V 307.2V 358.4V 409.6V
System Grouping Mode 57/64/65KWh 71/80/81kWh 86/96/98kWh 100/112/114kWh 128/131kWh
Grouping Mode 1P4S1P 5S1P 6S1P 7S1P 8S1P
Charge-Discharge Power 0.5P
AC Voltage 380±15%Vac@50/60Hz
AC Conversion Distortion Rate <3%
Cycle Life 10000@100%DOD@RT
IP Rating IP54
System Dimensions W1050D1100H1850±5mm
System Weight 1.21T±10kg 1.32T±10kg 1.43T±10kg 154T±10kg 165T±10kg
Communication CAN/Modbus/TCPIP
Fire Protection Aerosol
Thermal Management AIr Cooling
