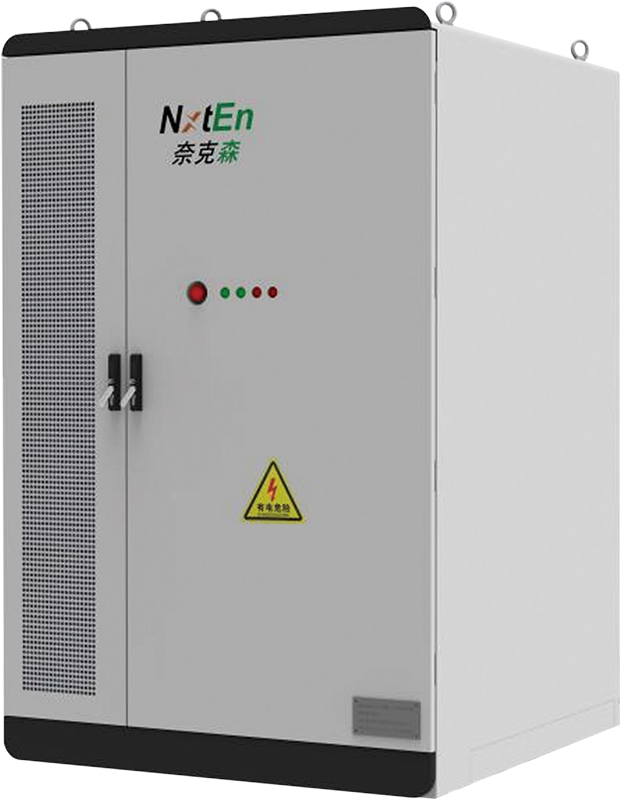

Outdoor Commercial & Industrial Energy Storage Cabinet (Liquid-Cooled)-215/233kWh

Nxten Outdoor Commercial & Industrial Energy Storage Cabinet (Liquid-Cooled) is an advanced energy storage solution featuring lithium iron phosphate (LFP) battery cells, intelligent liquid cooling, and a three-tier BMS architecture, specifically engineered for high-altitude grid-scale applications.

Typical Applications:
1. Grid-Side Energy Storage
· Peak Shaving & Frequency Regulation
· Renewable Energy Integration
2. Commercial & Industrial (C&I)
· Energy Arbitrage
· Backup Power
3. High-Altitude & Harsh Environments
· Highland Microgrids (≥4,000m)
· Extreme Temperature Operation
4. Off-Grid & Backup Solutions
· Island/Mining Power
· Telecom Base Stations
5. PV-Storage-Charging Integration
· EV Charging Stations

01. Compact & Modular Design
02. Intelligent Thermal Management
03. Multi-Layer Safety Protection
04. Smart Cloud-Based Management

Category Specification Technical Details
Product Model SMT-ESS-CUBE215/233 Containerized Energy Storage Solution
DC Side Parameters
Cell Type LFP 280Ah(Energy Storage Grade) UL1973 Certified
Configuration 1P240S (215KWh)/ 1P260S (233KWh) 768V/832V Nominal Voltage
Operating Voltage 600-876V/650-949V 20%-100%SOC Range
Charge/Discharge RATE 0.5C (140A Continuous) Peak 1C for 30min
AC Side Parameters
Rated Power 100kW 110kW for 1h
THD <3% IEEE 519 Compliant
Grid Voltage 380V/400V±10% 3P4W Connection
Key Specifications
System Efficiency ≥92% (DC-AC) 98% MPPT Efficiency
Cycle Life ≥10,000 Cycles @100%DoD 80% Capacity Retention
Cooling System Liquid Cooling 25±2℃ Cell Temperature Control
Fire Protection Dual-level (System+PACK) Aerosol+Gas Detection
Environmental
Operating Temperature -20℃~55℃ Heated Operation Below 0℃
Altitude 4000m (Derated>2000m) 3% Power Reduction per 500m above 2000m
Dimensions 1400×1385×2420mm
Certifications GB/T 34131, GB/T 36276 (DC)
