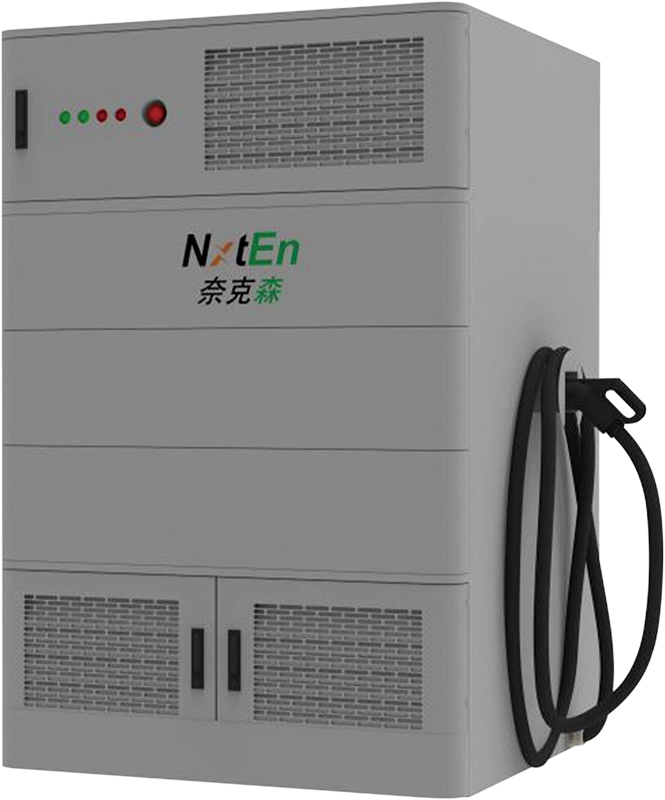

Smart Energy Storage Terminal System with PV+Storage+Charging Integration
Nxten Smart Energy Storage Terminal System is a stackable outdoor energy storage system (60kW/129kWh) integrating ultra-safe LFP batteries, intelligent liquid cooling, and multi-level fire protection for PV+storage+charging applications with IP55 ruggedness and modular scalability.
Deployment Scenarios:
· EV Fast Charging Stations – 40% demand charge reduction
· Industrial Microgrids – Seamless backup with STS switching
· Off-Grid Power – Solar hybridization for remote areas
01. Military-Grade Safety Design
02. Precision Thermal Management
03. 3-Stage Fire Safety
| Category | Parameter | Technical Details |
| Battery System | ||
| Cell Type | LFP 3.2V/280Ah | UL1973 cerified, Energy density: 155Wh/kg |
| Configuration | 1P144S(129.02KWh) | 460.8V nominal voltage, 280Ah capacity |
| Voltage Range | 403.2-518.4V | 20%-100%SOC operating window(±0.5%accuracy) |
| Cycle Life | ≥6,000 cycles | @80%DoD, 80%capacity retention |
| Calendar Life | ≥10 years | @25°℃ ambient, ≤50%SOC storage |
| Power Conversion | ||
| PCS Rating | 60KW(66KW peak) | CEC efficiency≥97%, European efficiency≥96.5% |
| AC Voltage | 380V±15% | LVRT/HVRT compliant, THD<3% |
| Overload Capacity | 1.1x continuous,1.2x 1min | 150%overload for 10s |
| PV Integration | ||
| Max PV Input | 60kW | 3 MPPT trackers, 99.9%tracking efficiency |
| Input Voltage | 260-900VDC | 150V cold-start capability |
| Themal Management | ||
| Cooling Method | Intelligent forced air | Variable-speed fans (40-100%PWM control) |
| Cell Temp Range | 15-30℃(±5℃ gradient) | Active balancing when △T≥3℃ |
| Ambient Range | -30℃~+55℃ | Heated operation below 0℃ |
| Safety Systems | ||
| Fire Protection | Pack aerosol+cabinet FPK | NFPA 855 compliant, 0.5s detection time |
| Pressure Relief | Cell/Pack/System triple vents | 5kPa activation pressure |
| IP Rating | IP55 | Protected against water jets (6.3mm nozzle) |
| Communications | ||
| Interfaces | RS485/CAN/Ethernet | lsolation voltage: 2500VAC |
| Protocols | Modbus RTU/CAN2.0/EtherCAT | Sample rate: 100ms(voltage), 1s(temperature) |
| Mechanical | ||
| Dimensions | 1204×1180×1800mm | 19″ rack-mountable design |
| Weight | ≤110kg/module | 304 stainless steel enclosure |
